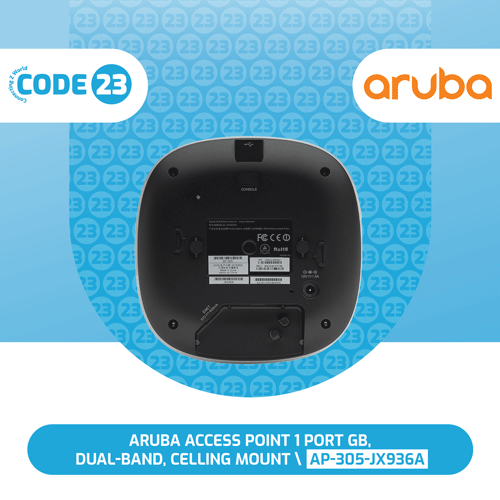

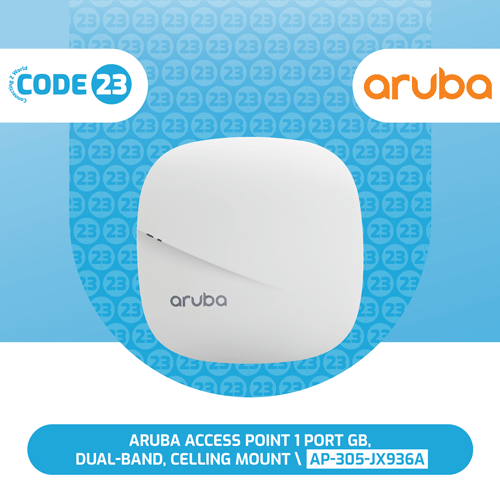

Aruba Access Point 1 Port Gb, Dual-Band,

Celling Mount \ AP-305-JX936A

The Aruba AP-305 (JX936A) is a powerful and efficient dual-band wireless access point designed to deliver fast, secure, and scalable Wi-Fi performance for modern business environments. With one Gigabit Ethernet port, dual-radio architecture, and ceiling-mount design, it offers excellent coverage, speed, and flexibility for mid-sized enterprises, schools, and retail locations.

Key Features:

✅ Dual-Band Wireless Performance

The AP-305 supports simultaneous 2.4 GHz and 5 GHz operation with 802.11ac Wave 2 (Wi-Fi 5) technology.

It delivers high-speed wireless performance with data rates up to 1.3 Gbps, ideal for environments with high device density.

✅ 1 x Gigabit Ethernet Port (PoE)

Equipped with a single 10/100/1000 Mbps Ethernet port, the AP supports Power over Ethernet (PoE),

allowing both power and data to be supplied via one cable—simplifying installation and reducing cabling costs.

✅ Ceiling-Mount Design

Engineered for ceiling or wall mounting, the AP-305 blends seamlessly into indoor environments

while ensuring optimal signal distribution and coverage.

✅ ClientMatch & Beamforming Technologies

Aruba’s advanced ClientMatch and beamforming capabilities optimize user performance by intelligently

directing connections to the best available access point and focusing signal strength toward active devices.

✅ Secure & Scalable

With WPA3 support, role-based access control, and integrated firewall capabilities, the AP-305 helps protect your network while allowing scalable, multi-user deployments.

✅ Centralized Management via Aruba Controller or Aruba Central

The access point can be managed through an Aruba Mobility Controller or cloud-managed via Aruba Central, providing flexible and comprehensive control over network performance, security, and analytics.

Technical Specifications:

• Wi-Fi Standard: IEEE 802.11ac Wave 2

• Radios: Dual radio (2.4GHz and 5GHz)

• Maximum Data Rate: Up to 1.3 Gbps

• Ethernet Port: 1 x RJ-45 10/100/1000Base-T (PoE)

• Mounting: Ceiling or wall mount

• Antennas: Integrated omni-directional

• Security: WPA3, WPA2-Enterprise, 802.1X

• Power: 802.3af PoE

• Dimensions: 183 x 183 x 41 mm

• Weight: 650g

Ideal Use Cases:

• Medium-sized offices and enterprise branches

• Education campuses and classrooms

• Hospitality and hotel Wi-Fi networks

• Retail stores and public venues

• Warehouses and industrial facilities

Conclusion

The Aruba AP-305 (JX936A) delivers powerful dual-band wireless connectivity with enterprise-grade security and manageability. With its ceiling-mount design, PoE support, and advanced Aruba networking features, it is a smart investment for organizations looking to expand or upgrade their wireless infrastructure with reliable performance and easy scalability.

• Product Description
• HPE Aruba AP-305 – wireless access point – Wi-Fi 5
•  Device Type
• Wireless access point
•  Form Factor
• In-ceiling – indoor
• Data Link Protocol
• IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
•  Frequency Band
• 2.4 GHz, 5 GHz
• Performance
• Concurrent data rate (5 GHz): 1300 Mbps ¦ Concurrent data rate (2.4 GHz): 400 Mbps ¦ Peak data rate: 1.7 Gbps
• Capacity
• Wireless clients per Wi-Fi radio: 255 ¦ BSSIDs per radio: 16
•  Included Accessories
• 2 x ceiling mounting clip
• Dimensions (WDHP)
• 6.5 in x 6.5 in x 1.5 in
•  Weight
• 16.22 Oz
•  Manufacturer Warranty
• Limited lifetime warranty
