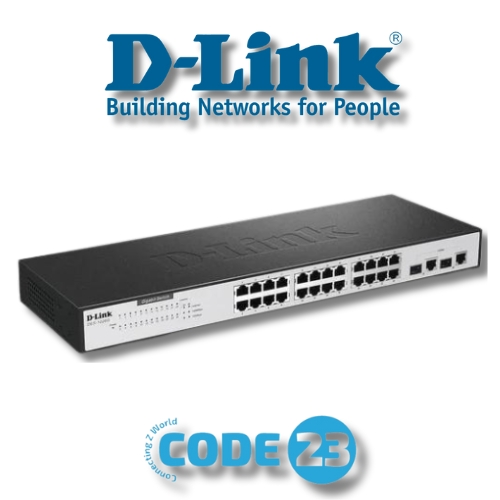

D-Link Switch 24 Port 10\100 , 2x Gigabit \ DES-1026G

DES-1026G/

DES-1026G/

1. 24 Fast Ethernet Ports: Provides 24 10/100Mbps Fast Ethernet ports, allowing multiple devices to connect to the network with ease.

2. 2 Gigabit Ethernet Ports: Equipped with 2 Gigabit Ethernet ports, which can be used for uplink connections to servers or other switches, providing higher bandwidth and speed.

3. Non-blocking Switching Architecture: Ensures maximum performance as it forwards and filters packets at full wire-speed for maximum throughput.

4. Auto MDI/MDIX: All ports support auto MDI/MDIX, eliminating the need for crossover cables or uplink ports.

5. Plug-and-Play: No configuration is necessary; just plug it in and start using it right away.

6. LED Indicators: Each port has LED indicators to show the connection status and activity, helping with troubleshooting and network management.

7. Flow Control: IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode to prevent data loss during transmission.

8. Energy-Efficient Design: Supports IEEE 802.3az Energy Efficient Ethernet, reducing power consumption during low data activity periods.

Specifications:

• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control

• Network Cables: UTP Cat. 5, Cat. 5e (100m max.)

• Port Functions: Supports full/half duplex operation, auto-negotiation, and auto MDI/MDIX for all ports

• Switching Capacity: 8.8 Gbps

• MAC Address Table: 8K entries

• Packet Buffer Memory: 512KB

• Dimensions: 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches)

• Weight: 1.6 kg (3.53 lbs)

• Power Consumption: Maximum 13.1 watts

Applications:

• Small to Medium-Sized Businesses: Ideal for expanding the network in a small to medium-sized office environment.

• Workgroup Connectivity: Provides a cost-effective way to connect multiple computers and devices in a workgroup setting.

• Server Farms: The Gigabit uplink ports can connect to servers or backbone networks, ensuring high-speed data transfer.

The DES-1026G is an affordable, easy-to-use, and reliable switch, making it suitable for businesses looking to expand their network infrastructure without a significant investment.
