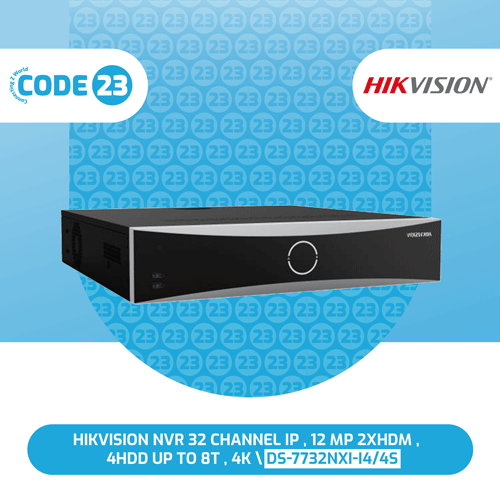

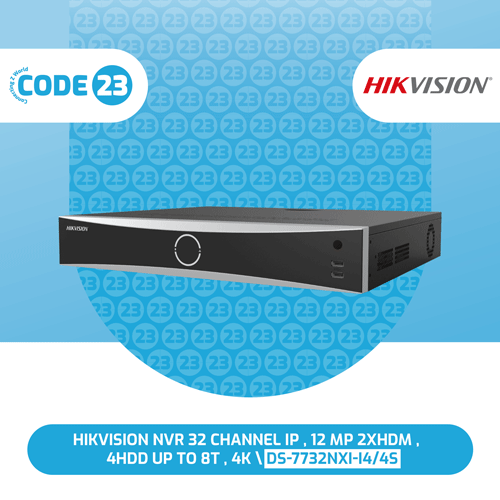

HikVision NVR 32 channel IP , 12 MP 2xHDM , 4HDD up to 8T , 4K \ DS-7732NXI-I4/4S

DS-7732NXI-I4/4S

DS-7732NXI-I4/4S

DS-7732NXI-I4/4S

DS-7732NXI-I4/4S

Call For Price

32-ch 1.5U AcuSense 4K NVR

Up to 32 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 12 MP high-definition live view, storage and playback
Up to 12-ch @ 1080p decoding capacity
Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
4 HDDs for continuous video recording
Compatible with third-party network cameras
4-ch false alarm reduction through human and vehicle target classification based on deep learning

Category: Ip camera Tags: hikvision nvr, NVR 32, NVR 4K

Description
Reviews (0)

Perimeter Protection
Human/Vehicle AnalysisFalse alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Video And Audio
IP Video Input32-ch
HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI.,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA OutputHDMI, VGA
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Incoming Bandwidth256 Mbps/200 Mbps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability12-ch@1080p
Synchronous Playback16-ch
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF,

Network
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
InterfaceN/A

RAID
RAID type

Auxiliary Interface
SATA4
ESATA1 eSATA interface
capacity up to 8 TB capacity for each HDD
Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out16/4

General
Power Supply100 to 240 VAC ≤ 80 W
Consumption≤ 30 W
Working Temperature-10° C to +55° C (+14° F to +131° F)
Working Humidity10 to 90 %
Chassis1.5U chassis
Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
≤ 5 kg (11 lb)
