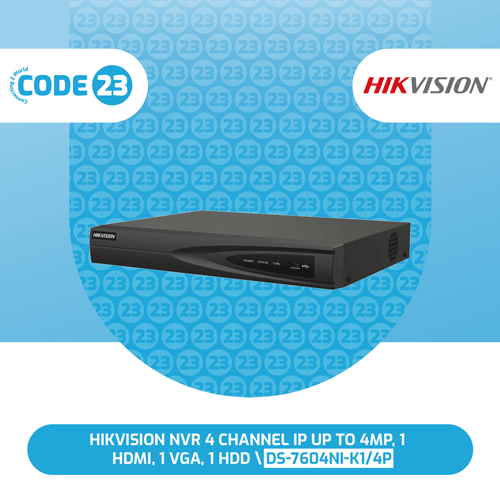

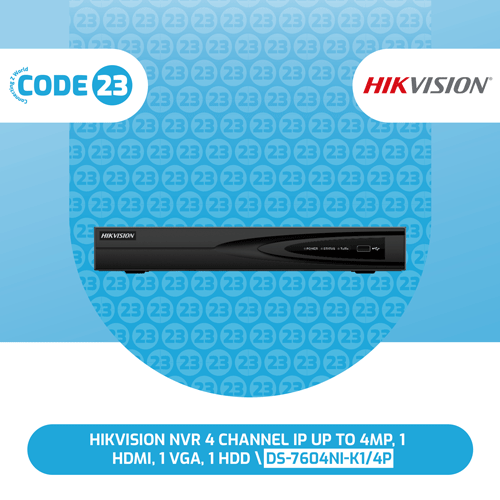

HikVision NVR 4 Channel IP Up to 4MP, 1 HDMI,

1 VGA, 1 HDD \DS-7604NI-K1/4P

The Hikvision DS-7604NI-K1/4P is a compact and powerful 4-channel IP Network Video Recorder (NVR) designed for small-scale surveillance systems. With built-in 4-port Power over Ethernet (PoE), support for cameras up to 4MP, and a user-friendly interface, this NVR offers an efficient and affordable solution for home security, small offices, and retail environments.

Key Features

1. 4-Channel IP Camera Support:

The NVR supports up to 4 IP channels, making it ideal for smaller setups where focused monitoring is essential. It offers full integration with Hikvision IP cameras and is ONVIF-compliant for compatibility with third-party devices.

2. Built-in 4-Port PoE:

With 4 built-in PoE ports, the DS-7604NI-K1/4P allows direct connection of cameras using a single Ethernet cable for both power and data. This plug-and-play design reduces installation time and eliminates the need for external PoE switches or power adapters.

3. HD Recording – Up to 4MP Resolution:

Supporting cameras up to 4 megapixels, the NVR delivers clear, high-definition video suitable for general surveillance needs such as identifying faces, monitoring entry points, or overseeing cash registers.

4. HDMI and VGA Output:

The device includes both an HDMI and VGA output, enabling local video display on standard or high-definition monitors. This allows for real-time monitoring and on-site playback without the need for a PC.

5. Efficient Video Compression:

With support for H.265+/H.265/H.264+/H.264 compression formats, the NVR minimizes storage usage and network bandwidth, allowing for longer recording durations without sacrificing video quality.

6. Storage and Backup:

Equipped with 1 SATA interface, the NVR supports up to 10TB of storage, providing sufficient space for continuous recording in small-scale installations. It also supports USB backup for video export and archival.

7. Remote Viewing and Smart Access:

Through Hik-Connect and iVMS-4200, users can monitor their systems remotely via smartphones, tablets, or PCs. This ensures 24/7 access to live video and playback, regardless of location.

Ideal Applications

• Private homes and apartments

• Small offices or kiosks

• Retail counters and convenience stores

• Clinics and reception areas

• Parking lots and building entrances

Conclusion

The Hikvision DS-7604NI-K1/4P is a smart choice for users looking for a compact, reliable, and cost-effective NVR solution. With integrated PoE, HD recording, and easy remote access, it delivers professional-grade performance tailored to smaller installations. It’s an excellent entry-level system that combines simplicity with essential surveillance features.

• Human/Vehicle Analysis1-ch;4-ch

• Video and Audio
• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
