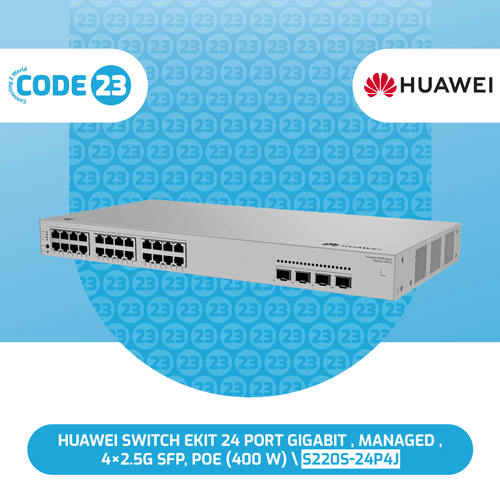

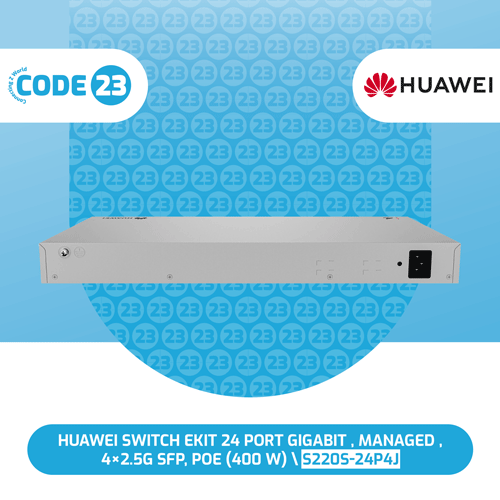

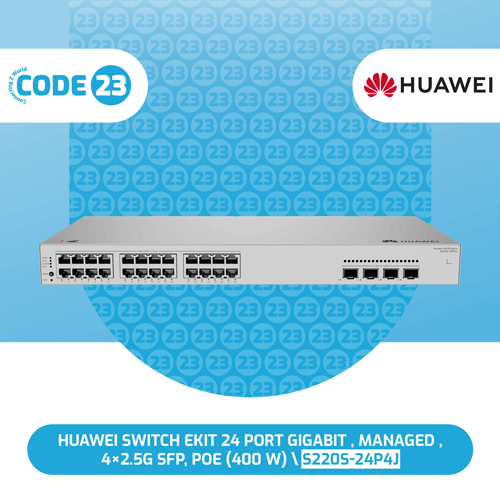

Huawei Switch eKit 24 Port Gigabit , Managed , 4×2.5G SFP, POE (400 W) \ S220S-24P4J

S220S-24P4J

S220S-24P4J

S220S-24P4J Overview

*Huawei S220S-24P4J is a manageable L2 switch equipped with 24x 1Gbit Ethernet with PoE+ support and 4x 2.5G SFP ports.

*The total PoE budget is 400W, ensuring reliable power for 24 devices under the 802.3af standard or 13 devices under the 802.

*It supports all common L2 features and extensive management options, including management via the Huawei eKit App, enabling cloud management.

Category: Switches Tags: 24 Port, 400 W, 4x2.5G SFP, Gigabit, Huawei, Managed, POE, S220S-24P4J, switch, Switch EKit

Description
Reviews (0)

S220S-24P4J Specs

Connectors and Interfaces

LAN speed:(24) 10/100/1000Mbps

Optical interfaces:(4) 1G/2.5Gbps

Power

Power type:Mains power (230V)

PoE type:PoE-Out (only)

PoE-Out standards:802.3af, 802.3at

PoE Out ports:24

PoE budget [W]:400

Max. power consumption [W]:482

Power via connector/terminal:230V AC

Physical characteristics

Design:Rackmount

Fans:Yes

Chassis design:Metal

Buttons:Reset

Operating temperature [°C]:-5 up to 45

Width [mm]:442

Height [mm]:44

Depth [mm]:220

General

Switchning capacity [Gbps]:68

MAC address table:16000

Packet forwarding rate [Mpps]:42

Software

Web management:Yes

Management:Web management, SSH, Telnet

Features:L2+
