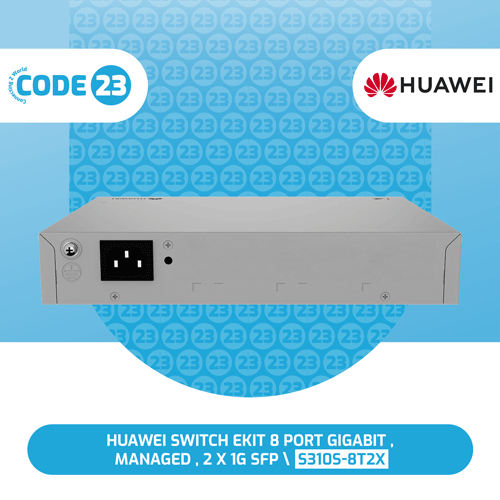

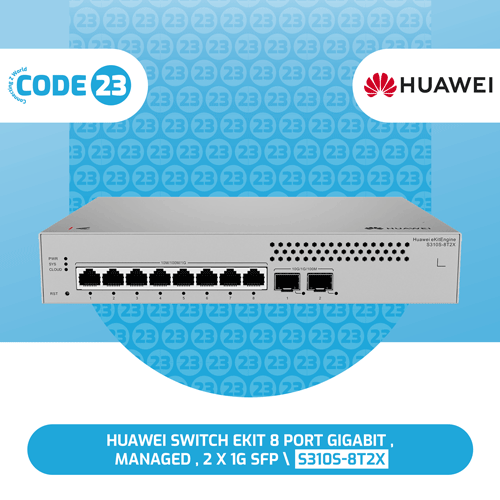

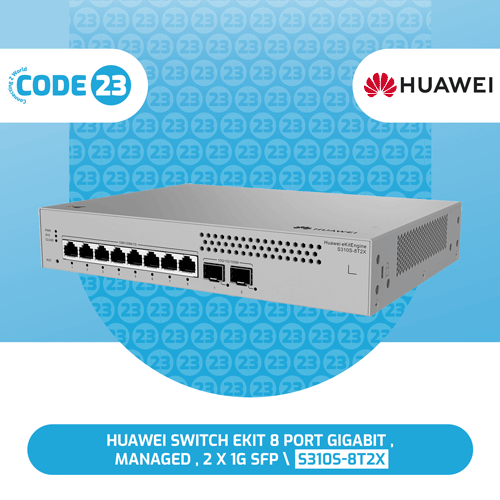

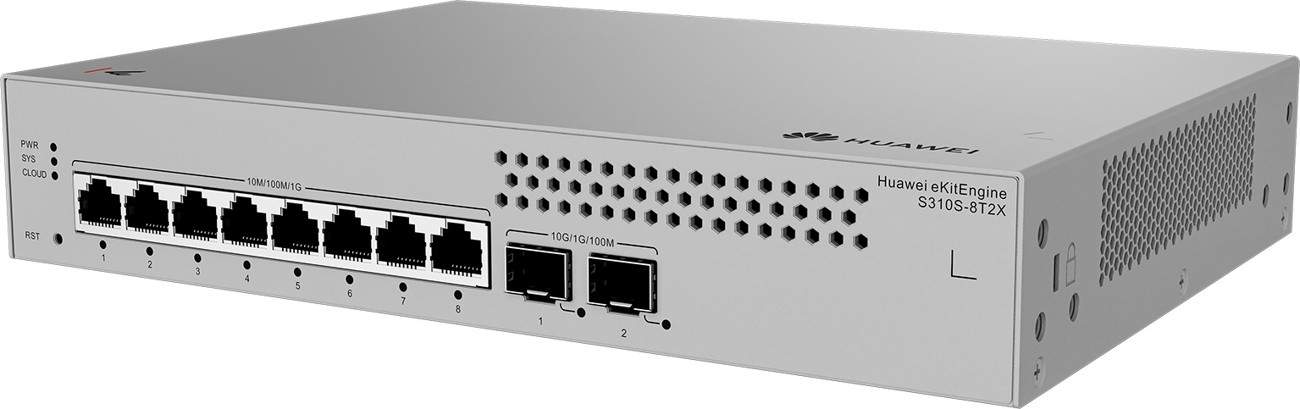

Huawei Switch Ekit 8 Port Gigabit , Managed

2 X 1G SFP \ S310S-8T2X

The Huawei S310S-8T2X is a robust and efficient Layer 2+ managed switch designed to meet the networking demands

of small to medium-sized enterprises (SMEs). With its combination of high-speed connectivity,

advanced management features, and fanless design, it offers a reliable solution for various networking scenarios.

Key Features

• Port Configuration: Equipped with 8 x 10/100/1000BASE-T Ethernet ports for flexible device connectivity and 2 x 10GE SFP+ uplink ports for high-speed data transmission.

• High Switching Capacity: Delivers a switching capacity of 56 Gbps and a forwarding rate of 42 Mpps,

• ensuring efficient data handling and minimal latency.download.discomp.cz+1Digitec+1

• Advanced Layer 2+ Features: Supports features like VLANs, Spanning Tree Protocol (STP), Rapid STP (RSTP), and Ethernet Ring Protection Switching (ERPS) for network resilience and segmentation.

• Security Measures: Incorporates security features such as DHCP snooping, IP-MAC-port binding, and Access Control Lists (ACLs) to protect against unauthorized access and network threats.

• Management Options: Offers versatile management through Web GUI, SSH, Telnet, and integration with Huawei’s eKit App for cloud-based monitoring and configuration.

• Fanless Design: Features a fanless architecture for silent operation, making it suitable for noise-sensitive environments like offices and classrooms.

Technical Specifications

• Model: Huawei S310S-8T2X

• Downlink Ports: 8 x 10/100/1000BASE-THuawei Support+1eetgroup.com+1

• Uplink Ports: 2 x 10GE SFP+

• Switching Capacity: 56 Gbps

• Forwarding Rate: 42 Mpps

• Dimensions (H x W x D): 43.6 mm x 250 mm x 180 mmHuawei Support+1download.discomp.cz+1

• Power Supply: Built-in AC power module

• Operating Temperature: -5°C to +40°CHuawei Enterprise+4download.discomp.cz+4Scribd+4

• Humidity: 5% to 95% RH, non-condensing

• Heat Dissipation: Natural cooling (fanless)

Applications

The Huawei S310S-8T2X is ideal for various applications, including:

• Small to Medium-Sized Enterprises: Providing reliable network connectivity for offices, retail stores, and hospitality venues.

• Educational Institutions: Supporting campus networks with high-speed data transfer and secure access controls.

• Industrial Settings: Ensuring stable and efficient networking in manufacturing plants and warehouses.

Conclusion

The Huawei S310S-8T2X stands out as a versatile and high-performance managed switch,

offering a blend of speed, security, and ease of management. Its compact and fanless design,

coupled with advanced features, makes it a valuable addition to any SME’s networking infrastructure.
