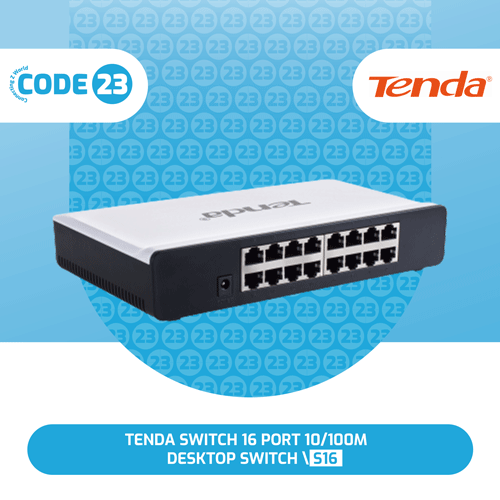

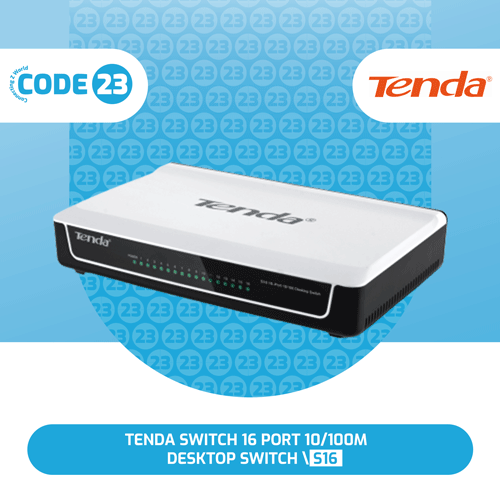

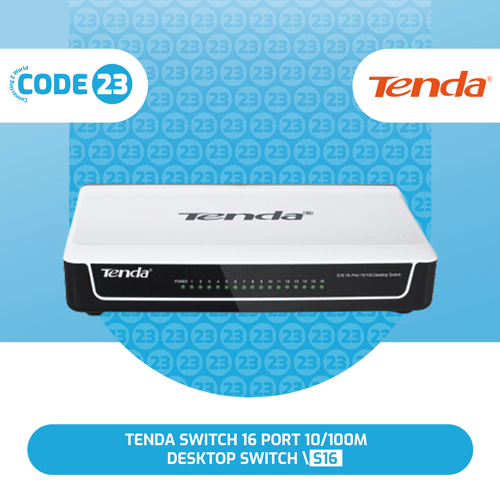

Tenda Switch 16 port 10/100M Desktop Switch \ S16

S16

S16

320,00 EGP

16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
Up to 200Mbps full duplex bandwidth on each port
Compact size fits into any environment
Address Learning and Aging, and Data Flow Control for enhanced transmission

Secure &Reassuring

The switch is built with reduced heat and a longer product life without sacrificing performance or functionality in mind.

With superb heat dissipation capability and manufactured with fireproof materials, the switch maintains optimum performance even in extreme environments.

Category: Switches Tags: s16, switch 16 port, tenda switch

Description
Reviews (0)

Hardware Switch 16 port

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator

1* Power, 16* Link/Act

Interfaces

16*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

218.0mmx135.0mmx41.6mm

Material

Plastic

Level of protection

ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding mode

Store-and-forward

Switch capacity

3.2Gbps

Packet forwarding rate

2.38Mpps

Buffer

1.25Mb

MAC address table

4K

Jumbo frame

N/A

Power

Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)

Power consumption

/

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software S16

Protocols

CDMA/CD

MAC address learning

Auto-Learning and Auto-Aging

Functions

plug-and-play
