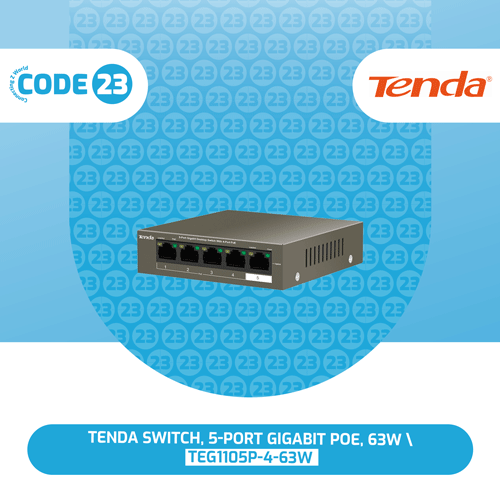

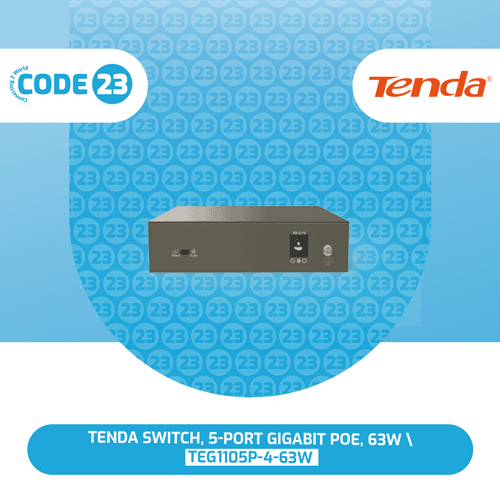

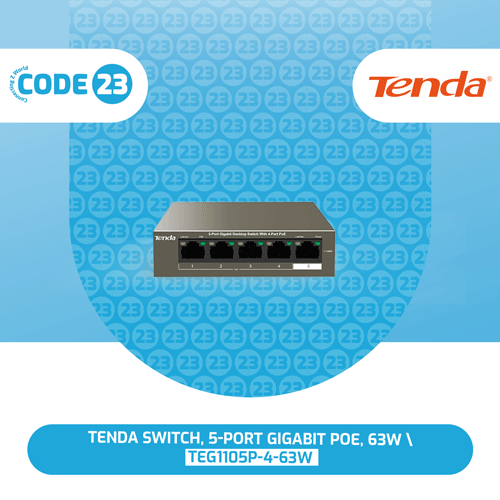

Name: Tenda Switch, 5-Port Gigabit PoE, 63W TEG1105P-4-63W | Code 23 Network
Price: 761.00 EGP
Availability: InStock

761,00 EGP

58W PoE power supply

Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.

Category: Switches Tags: 16 Port, 24Port, 48Port, 8 Port, poe switch, SMart Switch, switch, switch 5 port, Switch Gigabit, Switch POE, tenda

Description
Reviews (0)

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at

LED indicators

5* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

5*10/100/1000 Base-T Ethernet
Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimensions(L*W*H)

100.0mmx100.0mmx27.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

10 Gbps

Packet forwarding rate

7.44Mpps

Buffer

MAC address table

Jumbo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 58W

Power consumption

Input voltage

100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certificates

FCC、CE、RoHS

Software

Function

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
